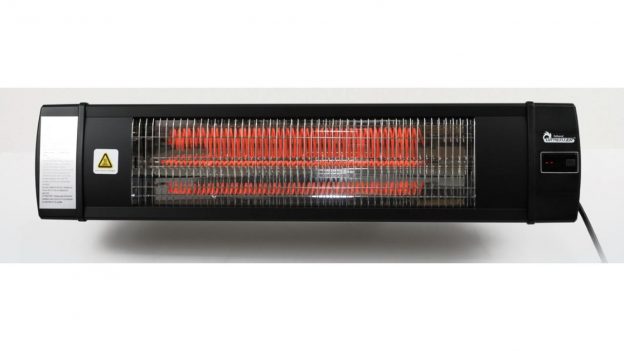

Dr Infrared DR-238 Review: Focused 120V Heat
The Dr. Infrared Heater DR-238 provides focused 120V radiant heat from a compact unit that can mount on a wall or ceiling. It is the cleanest choice here for a fixed table, bench or work area near a suitable outlet, but its 1,500-watt maximum is designed for close-range comfort rather than the broad reach of a high-output propane tower.
Pros
- The 120V plug-in design avoids propane tanks and dedicated 240V heater service.
- Three settings provide 900, 1,200 and 1,500 watts of radiant output.
- Wall and ceiling brackets support a permanent, floor-clearing position.
- A remote control is convenient when the heater is mounted overhead.
- The anodized aluminum enclosure carries an IP55 resistance rating.
Cons
- The comfort zone is much smaller than a 38,000 to 46,000 BTU propane heater can serve.
- A shared or marginal outdoor circuit may not support the full 1,500-watt load reliably.
- The heater works best when the seating position stays fixed.
- Wind and long distance quickly reduce perceived warmth.
- IP55 does not remove the need to protect connections and follow mounting instructions.
Three Heat Levels From a 120V Outlet
The DR-238 draws up to 1,500 watts from standard 120V service and provides 900, 1,200 and 1,500-watt settings. That makes it much easier to integrate than a 240V pendant, provided the available circuit is appropriate. The lower levels can reduce intensity during a mild evening, while the full setting delivers the strongest effect for a nearby table or chair.
Radiant heat travels toward people and surfaces rather than depending on warming all the surrounding air first. A seated person within the beam can feel comfortable even when the open patio itself remains cool. The effect becomes weaker with distance, an oblique angle or strong wind. Mounting geometry therefore matters at least as much as the wattage number on the control.
The carbon element produces heat without a fan, so the unit avoids fan noise and does not blow dust across a dining surface. It also reaches useful output without the warm-up cycle of an oil-filled room heater. For indoor room heating, compare models built around whole-room circulation in the best space heaters guide. This unit’s advantage is a directed outdoor comfort zone.
Wall or Ceiling Placement
Included brackets support wall or ceiling installation. A wall mount can aim across a bench or work surface, while an overhead position keeps the unit away from foot traffic and preserves floor area. The angle should reach the torso and legs of the intended users instead of passing above them. Test the planned line of sight before committing to holes and cable routing.
Mounting height and distance must remain within the product instructions. Placing the heater farther away for visual neatness can dilute its effect, while bringing it too close can create an uncomfortable hot spot or violate clearance rules. Nearby umbrellas, curtains, plants and stored cushions should be considered in every position the patio uses, not only its cleanest arrangement.

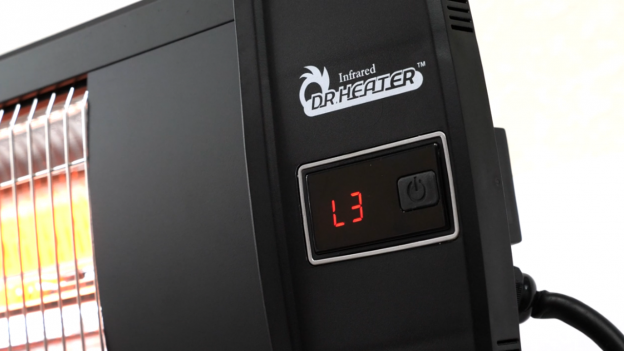

The remote is especially helpful overhead because changing levels does not require reaching the housing. Keep it in a known dry location and retain access to the heater’s own controls. Remote operation should never become remote supervision: the outdoor area still needs to be checked for obstructions, water exposure and changes in furniture placement before the element is energized.
Circuit Planning and Weather Resistance
A 1,500-watt appliance can draw about 12.5 amps at 120 volts. That is a large continuous load for a circuit that may also serve lights, a refrigerator, cooking equipment or decorative features. Use a properly installed grounded outdoor receptacle with the protection required by local code. Repeated breaker trips are a reason to correct the electrical plan, not to substitute a larger breaker or improvised adapter.
Extension cords add resistance, connection points and trip hazards. If one is permitted by the manual, it must be outdoor-rated and sized for the full load and distance. A permanent outlet near the mounting position is cleaner and safer. Keep plugs and receptacles out of standing water, protect the cord from doors and sharp furniture, and never coil excess cable tightly while the heater is drawing full power.
The IP55 rating indicates resistance to dust ingress and water jets, but it is not a license for submersion, pressure washing or careless connections. The heater should be installed with its approved orientation and the electrical side protected as directed. A covered patio can reduce weather exposure, although the structure still needs adequate clearance around the hot face.
Where the DR-238 Fits Best

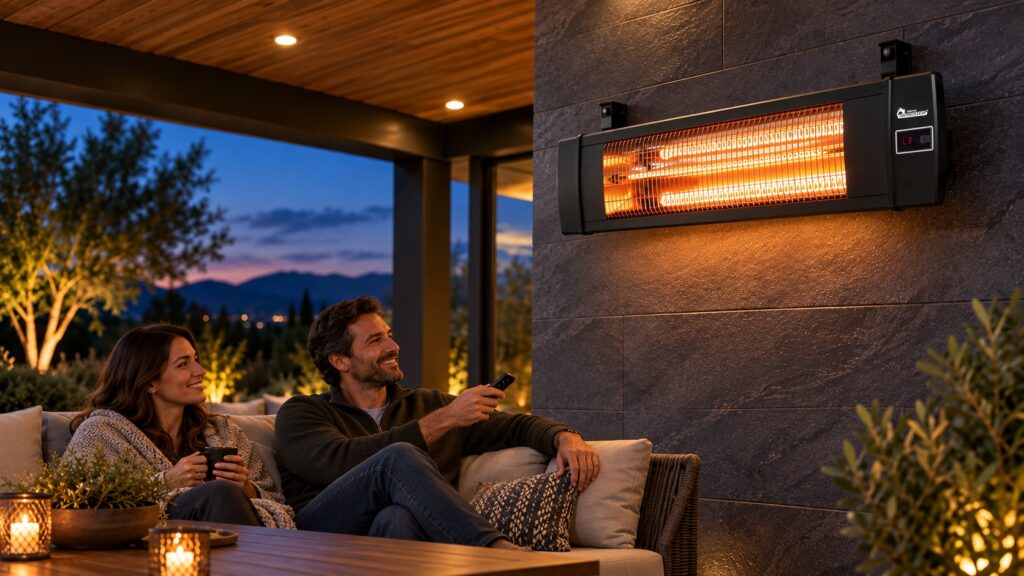

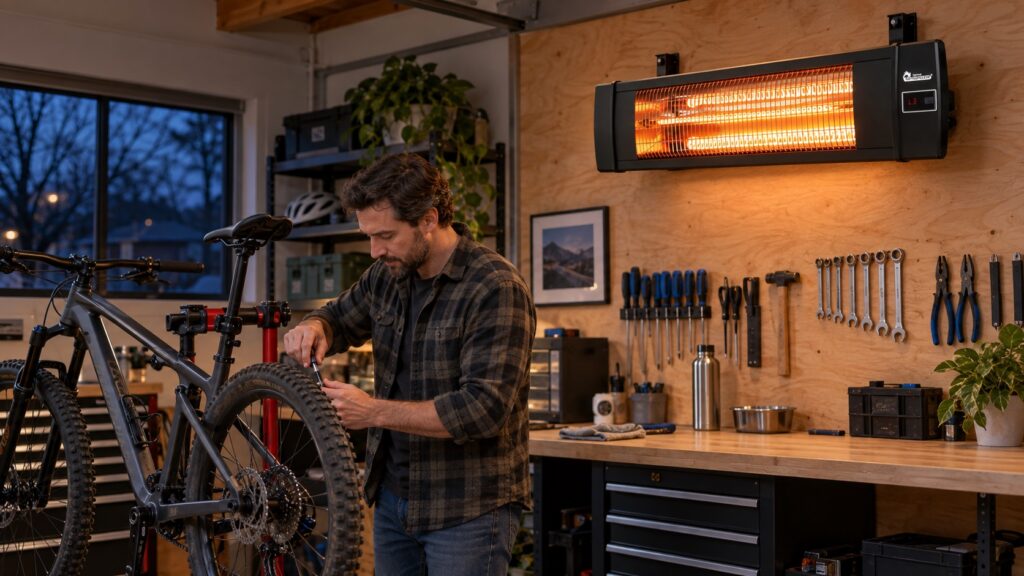

The ideal setting is predictable: a two-to-four-person table, a bench against a wall, a covered work area or a favorite chair that stays in one place. The heater can aim directly at that zone, and the remote can tune intensity as the evening cools. No tank occupies floor space, no flame competes with conversation and there is no propane refill routine.
The limitation appears when people spread out. A 1,500-watt beam does not provide the broad circular warmth of a tall propane tower. Moving the heater frequently also undermines the advantage of brackets and careful aiming. Buyers with a large open deck should either plan several electrical zones or choose a higher-output fuel source rather than expect one compact unit to cover everything.
This is the most accessible electric option in the lineup because it works with 120V power. The Bromic Eclipse is more architectural and more powerful, but it requires 240V service and professional installation. The DR-238 keeps the commitment lower while still delivering a proper mounted radiant element, three output choices and a housing built for outdoor conditions.

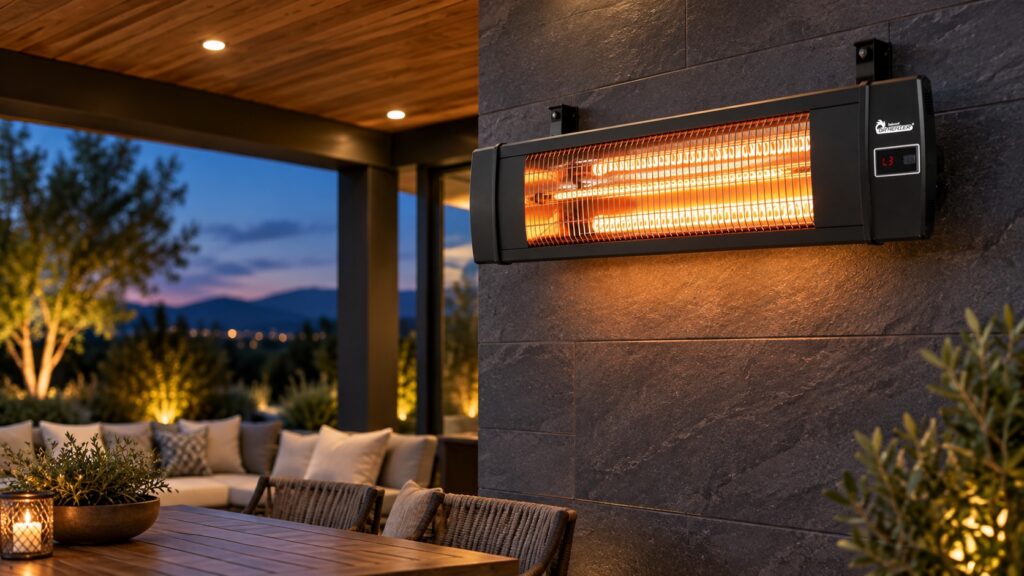

Should You Buy the Dr. Infrared Heater DR-238?
Buy the DR-238 for a compact, consistent seating or work zone near a correctly rated 120V outlet. It is clean, quiet and easy to control once the bracket and circuit are planned around the people who will use it.
Pass if the goal is to heat a large exposed patio or move warmth between several areas. Propane supplies much more raw output, while a permanent 240V system better suits a premium built-in installation.
For focused plug-in comfort without a tank on the floor, the Dr. Infrared Heater DR-238 is the best 120V mounted electric heater in this lineup.
